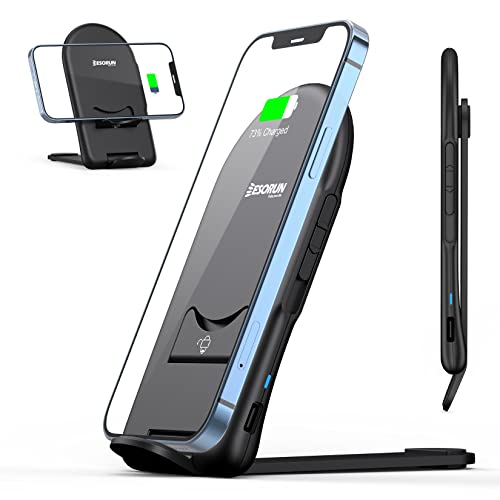

ESORUN Wireless Charger Stand,15W Fast Charging
✔ Cash on Delivery Available
✔ Fast Nationwide Shipping
✔ Premium Quality Guaranteed
✔ Easy Returns & Exchanges
✔ 100% Customer Satisfaction
ESORUN Wireless Charger Stand,15W Fast Charging
Accessories:
Wireless transmitter x 1
Type C data cable x 1
User manual x 1
Foldable Wireless Charging Stand
SPECIFICATIONS
| Power | 15W/10W/7.5W/5W |
| Input | 5V/2A, 9V/2A,12/1 67A |
| Wireless Output | SV/lA, 9V/0 83A, 9V/l 12A,9V/l 67A |
| Charging Efficiency | 270% |
| Transmission Distance | <8mm |
| Product Size | 137 3 x 69 3xl0 mm |
| Weight | 145g |
PRODUCT STRUCTURE AND COMPOSITION
| Transmitter | Stand |
| Silicone pad | LED |
| LED touch switch | Input port |
HOW TO USE
Charging your wireless transmitter
- Charge your wireless transmitter via included Type C data cable.
- The wireless transmitter is ready for your mobile device.
Charging the mobile device from the wireless transmitter
- Put your mobile device (the phone you used must be able to support the wireless charging or your phone is equipped with a wireless receiver chip).
LED usage
The product is with LED indicator
When powering on and on standby: The light is red
When wireless charging: Light is blue
Tips: When you do not need the light on, you can touch the touch switch on the back of the product to turn off it
When your wireless transmitter working improperly
- Clean the clutters on the wireless transmitter.
- When the wireless transmitter is over-heating, take your mobile device away from your wireless transmitter The transmitter will stop charging automatically when overheating. Please try charging again when the wireless transmitter cooling down.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Operation frequency: 110.256kHz to 147.436kHz
H-filed strength: -8.16dBuA/m@10m
REMARKS
- The charging adapter you used should meet QC2.0, QC3.0, or QC4.0 standards.
- The Type C charging cable you used should be the data cable, not the charging function only.
- It’s normal that this charger and your smartphone will be hot under operating conditions, especially when the phone charging and used at the same time(such as playing music).
- The charging adapter is not included. A charging adapter is required.
- Not works with SV/lA or lower input. For safety, please do not use less than SV/lA input charger or USB port to power up.
